Double Security seal, DX type seal, is composed of 4 sealing rings.

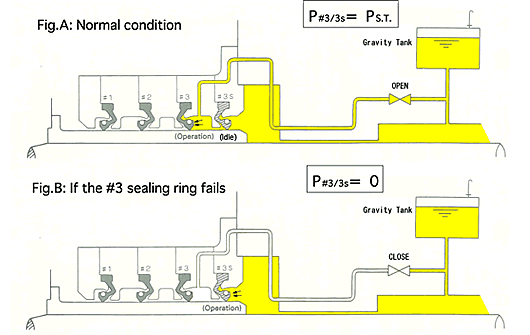

Because the oil pressure in #3/3S chamber is the same as stern tube oil pressure, #3S ring is usually maintained in an idling condition. When #3 ring is damaged, #3S ring is put into operation by closing two valves. The oil leakage can be stopped. This seal is very popular now especially for large size ships. |
