Marine Ace Seal

We are the leading manufacturer of stern tube shaft sealing devices worldwide with our products installed on over 30,000 ships of 100 gross tonnages or more.

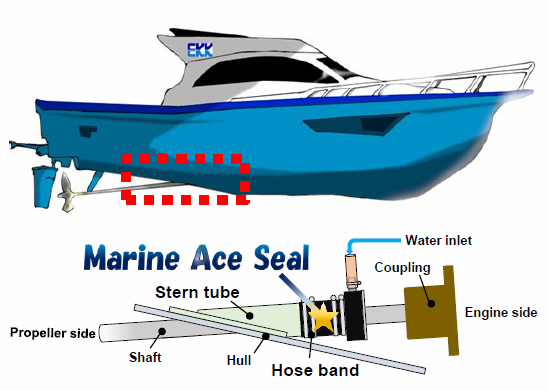

The Marine Ace Seal (MAS) is our newly developed water-lubricated stern seal for small vessels with direct drive systems.

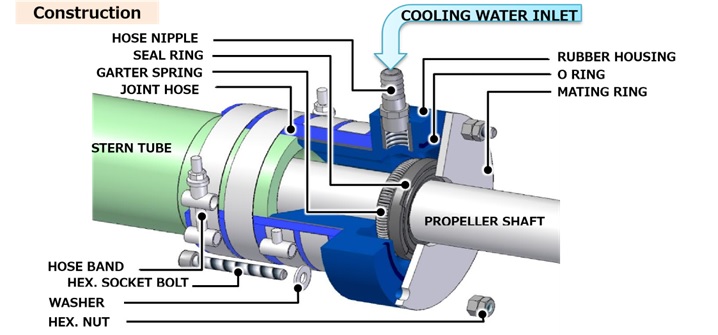

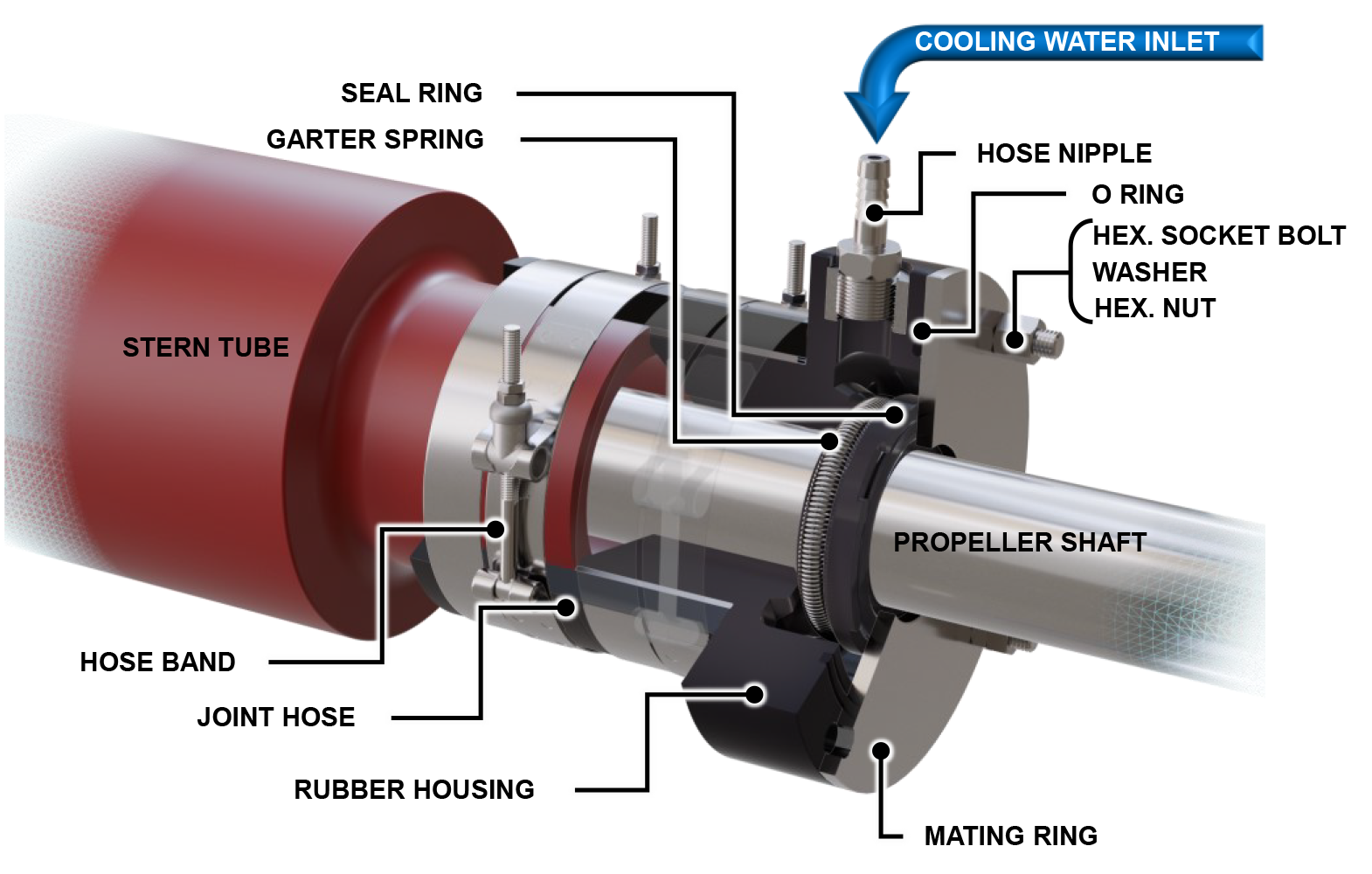

Construction

Features and Design Outline

  • ●Simple and robust rubber housing design
  • ●Excellent resistance to vibration and sealing performance
  • ●Excellent axial followability
  • ●Excellent slurry resistance

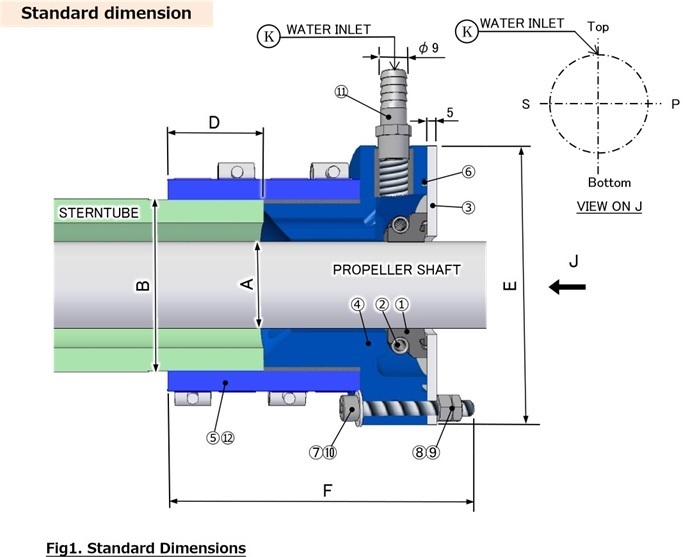

  • ●Propeller shaft diameter
    φ45~φ85(5mm incréments), 2"~3"(0.5" incréments)
  • ●Allowable PV value : 0.3 MPa-m/sec
    P (pressure in sealing device) : Max. 0.1 MPa
    V (shaft rotation speed)
  • ●Cooling water temperature : 0~40℃
