Compact Seal CX/DX

The well known and high reliable COMPACT SEAL (CX TYPE, DX TYPE)

Structure

The COMPACT SEAL (CX Type, DX Type) is composed of three types of metal rings (flange ring, intermediate ring and cover ring), assembeled by bolts. These metal rings form a casing, and the seal rings are tightly fixed between metal rings. The metal rings are in contact with each other, which assures that the compression of the seal rings is always aintained to the proper gegree, preventing the risk of cracks occurring by excessive pressure on seal rings. These noe seal rings are all identical in design, and normally an aft seal is equipped with these seal rings and forward seal with two seal rigns. The DX Type is equipped with one more seal ring, which works as a spare oil seal for emergency use.

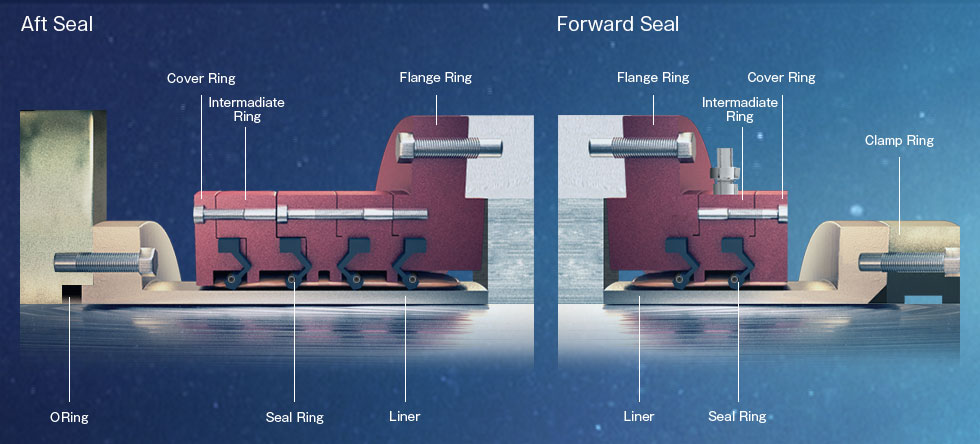

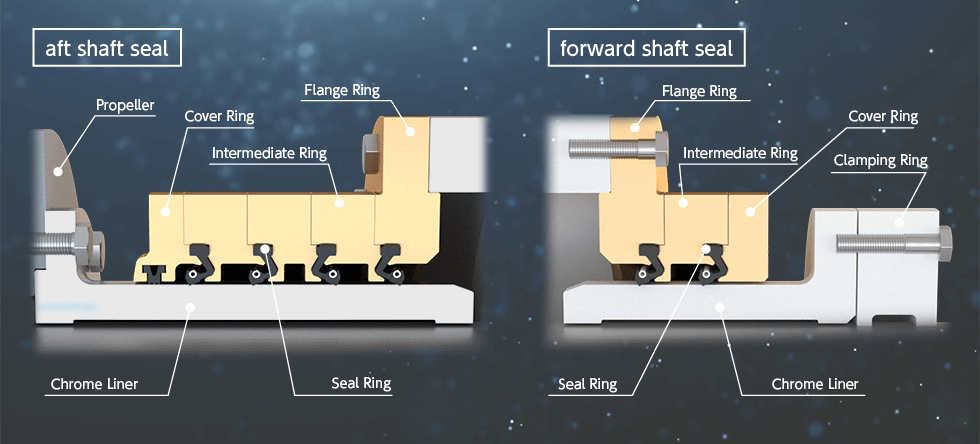

  • Aft Seal/Forward Seal

Features

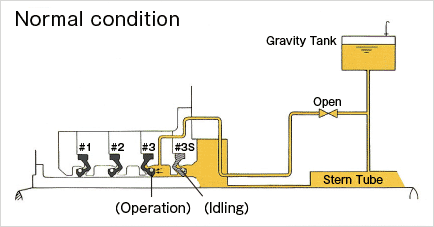

  • Normal condition

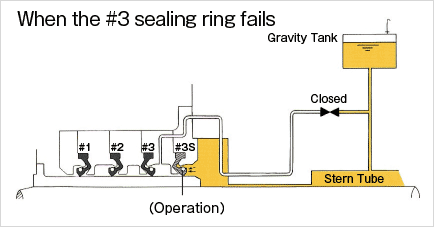

  • When the #3 sealing ring fails
  • ●Best seal ring design through highly advanced technologies
    The COMPACT SEAL gives excellent sealing performance, easy handling and stable quality over a long period of time, by utilizing the latest design technology and specially developed seal ring shape and material.
  • ●A seal ring material with superb durability
    The seal rings come in two kinds of materials - VITON (fluoric rubber) and NBR (nitrile-butadiene rubber) – for selection depending on the operating conditions of stern tube seal. The VITON seal ring fitted on the COMPACT SEAL has superb heat resistance, with a special fabric vulcanized on its surface to assure high strength and durability. With its superior structure, the VITON seal ring features the important property of being free from the danger of crack generation under heavily loaded conditions.
  • ●A chrome steel liner with superior abrasion and corrosion-resistance
    A special grade of high-chromium stainless steel is used for this liner.
    This new chrome steel liner is far superior to conventional chrome liners in its abrasion and corrosion resistance, and is highly effective when used as the aft liner where pitting corrosion is liable to occur.
  • ●Repeatedly machinable liner
    Our chrome steel liners are provided with a sufficient machining allowance, so that the worn-out liner can be repeatedly reused machining.
  • ●Double Security SEAL DX Type
    In case of any oil leakage from the #3 seal ring, the #3S seal ring is put into operation by closing two valves on the oil line between the #3 and #3S chamber. The #3S seal ring is safety serviceable for a long period thereafter.

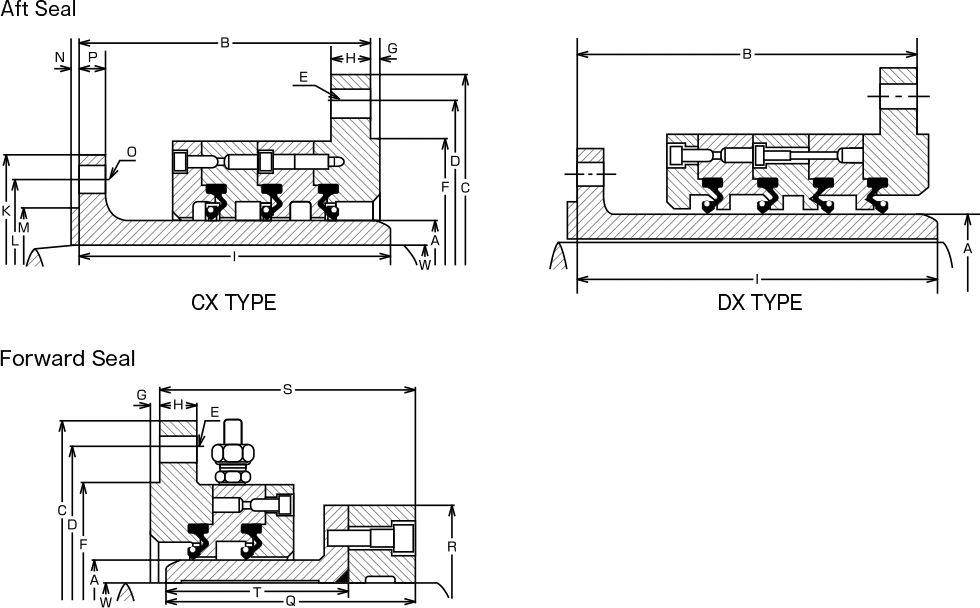

  • Standard Dimension
Standard CX Dimensions
(If a distance ring is used, length “B” and “I” of the seals smaller in size than A size 380 will be larger than those in the following table.)
(mm)
A Size ※125 140 160 180 200 220 240 260 280 300 330 355 380 400 420 450 480
W-min 80 111 126 146 166 186 206 226 246 266 286 316 340 363 382 401 429
W-max 110 125 145 165 185 205 225 245 265 285 315 339 362 381 400 428 457
B 160 160 160 160 160 160 175 175 175 175 175 195 195 200 200 225 225
C 275 290 310 330 350 370 425 445 465 485 515 565 590 610 630 675 705
D 245 260 280 300 320 340 390 410 430 450 480 525 550 570 590 630 660
E 8×M12 8×M12 8×M12 8×M12 8×M12 8×M12 12×M16 12×M16 12×M16 12×M16 12×M16 12×M20 12×M20 12×M20 12×M20 12×M20 12×M20
F 210 225 245 265 285 305 345 365 385 405 435 475 500 520 540 575 605
G 6 6 6 6 6 6 6 6 6 6 6 7 7 7 7 8 8
H 15 15 15 15 15 15 25 25 25 25 25 25 25 25 25 30 30
I 180 180 180 180 180 180 191 191 191 191 191 212 212 217 217 241 241
K 184 200 230 260 280 300 320 340 360 375 425 450 480 500 520 550 590
L 164 180 210 230 250 270 290 310 330 346 390 416 440 460 486 510 550
M 145 160 190 204 224 240 260 284 300 320 360 384 406 424 450 476 510
N 6 6 6 6 6 6 6 6 6 6 7 7 7 7 8 8 8
O 8×M8 8×M8 8×M8 8×M12 8×M12 8×M12 8×M12 8×M12 12×M12 12×M12 12×M12 12×M16 12×M16 12×M16 12×M16 12×M16 12×M20
P 12 12 12 12 12 12 15 15 15 15 15 15 15 20 20 20 20
Q 149 149 149 149 149 149 159 159 164 164 164 185 185 185 190 205 205
R 190 195 220 240 260 280 300 320 350 370 400 430 460 480 500 530 560
S 140 140 140 140 140 140 153 153 158 158 158 184 184 184 189 205 205
T 109 109 109 109 109 109 119 119 119 119 119 135 135 135 135 150 150
Weight kg Forward Seal 14 26 27 31 33 37 52 55 62 70 84 109 119 120 131 170 180
Aft Seal 26 29 30 34 37 42 59 64 69 76 92 122 130 135 144 203 215

※Sectional shape of seal ring in 125 size is different illustration in this brochure.

A Size 500 530 560 600 630 670 710 750 800 850 900 950 1000 1060 1120 1180
W-min 458 477 505 533 571 599 636 673 711 757 804 851 897 943 999 1054
W-max 476 504 532 570 598 635 672 710 756 803 850 896 942 998 1053 1130
B 225 225 240 240 245 245 280 280 310 310 330 330 330 350 350 350
C 725 755 820 860 890 930 990 1030 1090 1140 1200 1250 1300 1400 1460 1520
D 680 710 765 805 835 875 930 970 1030 1080 1135 1185 1235 1325 1385 1445
E 12×M20 12×M20 12×M24 12×M24 12×M24 12×M24 16×M24 16×M24 20×M24 20×M24 20×M24 20×M24 20×M24 24×M30 24×M30 24×M30
F 625 655 700 740 770 810 865 905 960 1010 1065 1115 1165 1245 1305 1365
G 8 8 9 9 9 9 10 10 10 10 11 11 11 11 11 11
H 30 30 35 35 35 35 40 40 40 40 45 45 45 50 50 50
I 241 241 253 253 258 258 301 301 338 338 362 362 362 381 381 386
K 600 630 675 700 760 820 840 885 945 1000 1070 1130 1170 1230 1300 1360
L 560 590 630 660 710 750 790 836 890 950 1010 1070 1110 1170 1230 1290
M 526 550 588 620 670 710 740 780 825 870 920 970 1040 1100 1160 1220
N 8 8 9 9 9 10 10 10 10 10 11 11 11 11 11 12
O 12×M20 12×M20 12×M20 12×M20 12×M24 12×M24 12×M24 16×M24 16×M24 16×M24 16×M24 16×M24 20×M24 20×M24 20×M30 24×M30
P 20 20 20 20 22 22 25 25 30 30 35 35 35 35 40 40
Q 205 205 221 221 238 238 268 318 337 337 349 349 349 389 399 399
R 580 620 650 690 720 760 830 870 915 974 1027 1076 1130 1200 1260 1340
S 205 205 223 223 240 240 268 318 336 336 352 352 352 395 405 405
T 150 150 166 166 168 168 198 198 217 217 229 229 229 244 249 249
Weight kg Forward Seal 189 212 262 290 331 371 477 580 668 736 825 890 998 1222 1380 1495
Aft Seal 220 230 294 325 392 417 504 525 655 735 858 933 1000 1205 1374 1477
>
Standard DX Dimensions (The following two dimensions are different from the standard CX dimensions; otherwise the dimensions are the same. B: Aft seal length, I: Aft liner length)
A Size 140 160 180 200 220 240 260 280 300 330 355 380 400 420 450 480 500 530 560 600 630 670 710 750 800 850 900 950 1000 1060 1120 1180
B 200 200 200 200 200 215 220 220 220 220 235 235 240 240 270 270 270 270 285 285 290 290 330 330 365 365 385 385 385 405 410 410
I 220 220 220 220 220 233 236 236 236 236 252 252 257 257 286 286 286 286 298 298 303 303 351 351 393 393 417 417 417 436 441 441
  • The “CERTIFICATE for KEMEL Genuine Seal rings” will be attached into the Seal Ring spare parts box from 22 February, 2016.
