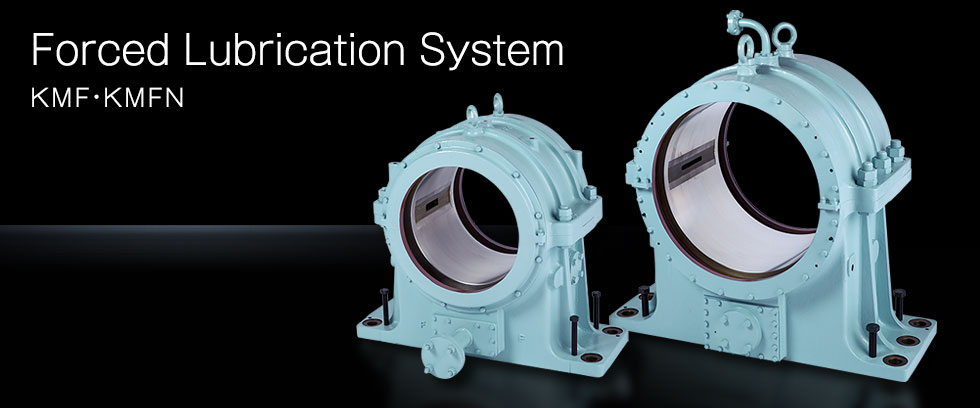

Forced Lubrication System (KMF)(KMFN)

Forced Lubrication System (KMF Type)
Forced lubrication system (KMF Type) requires oil supply line while cooling water line is unnecessary.

Forced Lubrication System (KMFN Type)
Forced lubrication system (KMFN Type) requires oil supply line while cooling water line is unnecessary.

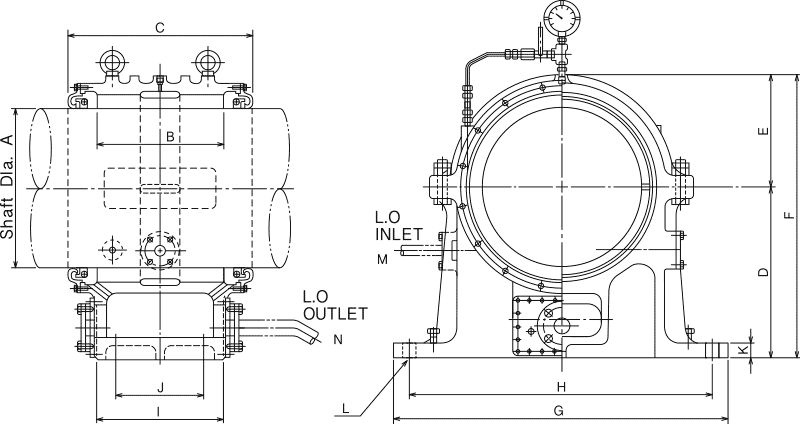

  • Standard Dimension
(mm)
Size
(KMF)		 A B C D E F G H I J K L M N
MIN. MAX.
    310 Dimensions are available on request.
340 311 340 260 392 380 245 625 740 660 260 180 35 M30 25A 40A
370 341 370 280 412 400 263 663 780 700 280 200 35 M30 25A 40A
400 371 400 300 442 430 280 710 830 750 300 220 35 M30 25A 40A
430 401 430 320 462 455 297 752 870 790 320 240 40 M30 25A 40A
460 431 460 340 482 485 314 799 960 860 340 240 40 M36 25A 50A
490 461 490 370 512 510 332 842 990 890 370 270 40 M36 25A 50A
520 491 520 400 542 540 350 890 1040 940 400 290 40 M36 25A 50A
550 521 550 420 572 565 365 930 1100 990 420 310 45 M42 25A 50A
580 551 580 440 592 590 382 972 1130 1020 440 330 45 M42 25A 65A
620 581 620 465 617 630 410 1040 1190 1080 465 360 45 M42 25A 65A
660 621 660 500 672 660 435 1095 1260 1140 500 380 50 M48 25A 65A
700 661 700 580 752 700 465 1165 1320 1200 580 460 50 M48 25A 80A
750 701 750 640 812 745 490 1235 1380 1260 640 520 55 M48 25A 80A
800 751 800 760 932 790 520 1310 1440 1320 760 640 55 M48 25A 80A
  801 Dimensions are available on request.
